BMW E36 / E46 - Clutch SMF Kit-Stage 2 Sport - PC-3194-S2SF
BMW E36 / E46 - Clutch SMF Kit-Stage 2 Sport - PC-3194-S2SF

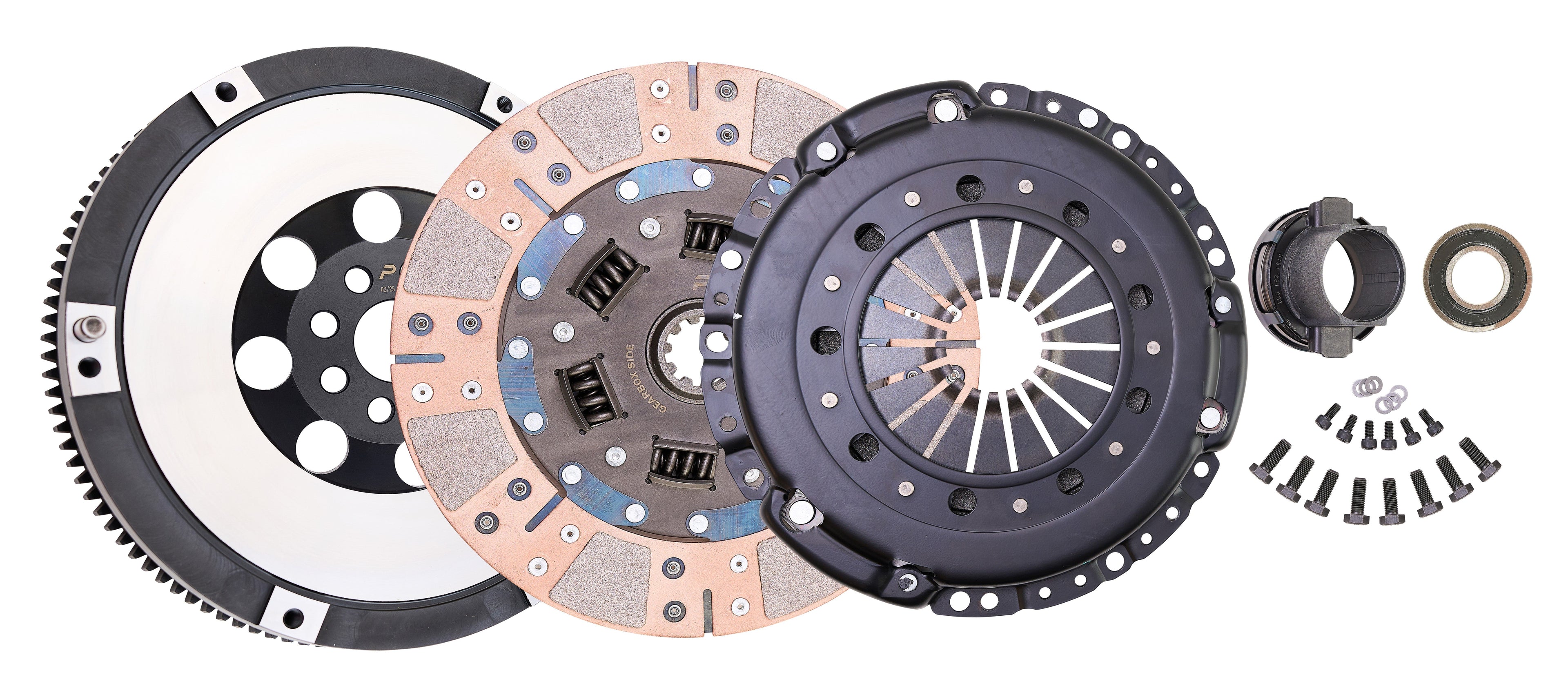

Full Face Segmented Ceramic friction Sprung Clutch Kit Inc Flywheel
A true hybrid performance system designed for dual-purpose use. The Performance Clutches Stage 2 Sport Single Mass Flywheel Kit is engineered for drivers demanding significant torque capacity gains while retaining controlled engagement suitable for daily driving. The 7.2kg 4140 forged steel flywheel lowers rotational inertia, allowing faster rev climb, improved throttle modulation, and quicker shift transitions. Its integral ring gear design ensures outstanding structural strength and resistance to heat distortion. The cover assembly features a QT450 steel pressure plate, delivering exceptional thermic stability and consistent clamp load under repeated high-temperature cycles.
Technical specifications
| SKU | PC-3194-S2SF |
|---|---|
| Product range | Clutch SMF Kit - Stage 2 Sport |
| Base kit number | 3194 |
| Hub spline | 10 |
| Friction type / paddles | Full Face Segmented Ceramic |
| Operation | Push Type |
| Clamp load | 9300 N |
| Flywheel step | -3.7 mm |
| Torque at wheels | 420 Ib.ft / 570 Nm |
| CSC required | No |
| Release bearing required | No |
| Release bearing included | Yes |
| Product weight | 16.5 Kgs |
| Shipping box | 379 × 360 × 131 mm |
| Box reference | PC-BOX-01 |
| Technical note | Kit include solid flywheel to replace the OE DMF |
| Recommended use | Fast road, Track days, Circuit racing |
Vehicle compatibility
Use the model, year and engine details below to check fitment. If your vehicle has been modified or its exact specification is not shown, please confirm compatibility before ordering.
| Make | Model | Years | Chassis | Engine | Power | Drivetrain |
|---|---|---|---|---|---|---|
| BMW | 3 Series (E36) | 1990–2000 | E36 | 2.5L, 2.8L, 3.0L, 3.2L, M52 B25, M50 B25, M52 B28, S50 B30, S50 B32 | 170–321 hp | RWD, 5-Speed |
| BMW | 3 Series (E46) | 1998–2003 | E46 | 2.5L, 2.8L, 3.0L, M52 B25, M54 B25, M52 B28, M54 B30 | 163–231 hp | RWD, AWD, 5-Speed, Sequential |
| BMW | 5 Series (E39) | 1996–2003 | E39 | 2.5L, 2.8L, 3.0L, 3.5L, M54 B25, M52 B28, M54 B30, M52 B30, M62 B35 | 192–245 hp | RWD, 5-Speed |
| BMW | 7 Series (E38) | 1996–2001 | E38 | 2.8L, 3.5L, M52 B28, M62 B35 | 193–235 hp | RWD, 5-Speed |
| BMW | Z3 (E36) | 1998–2003 | E36 | 2.8L, 3.0L, M52 B28, M54 B30 | 193–231 hp | RWD, 5-Speed |
