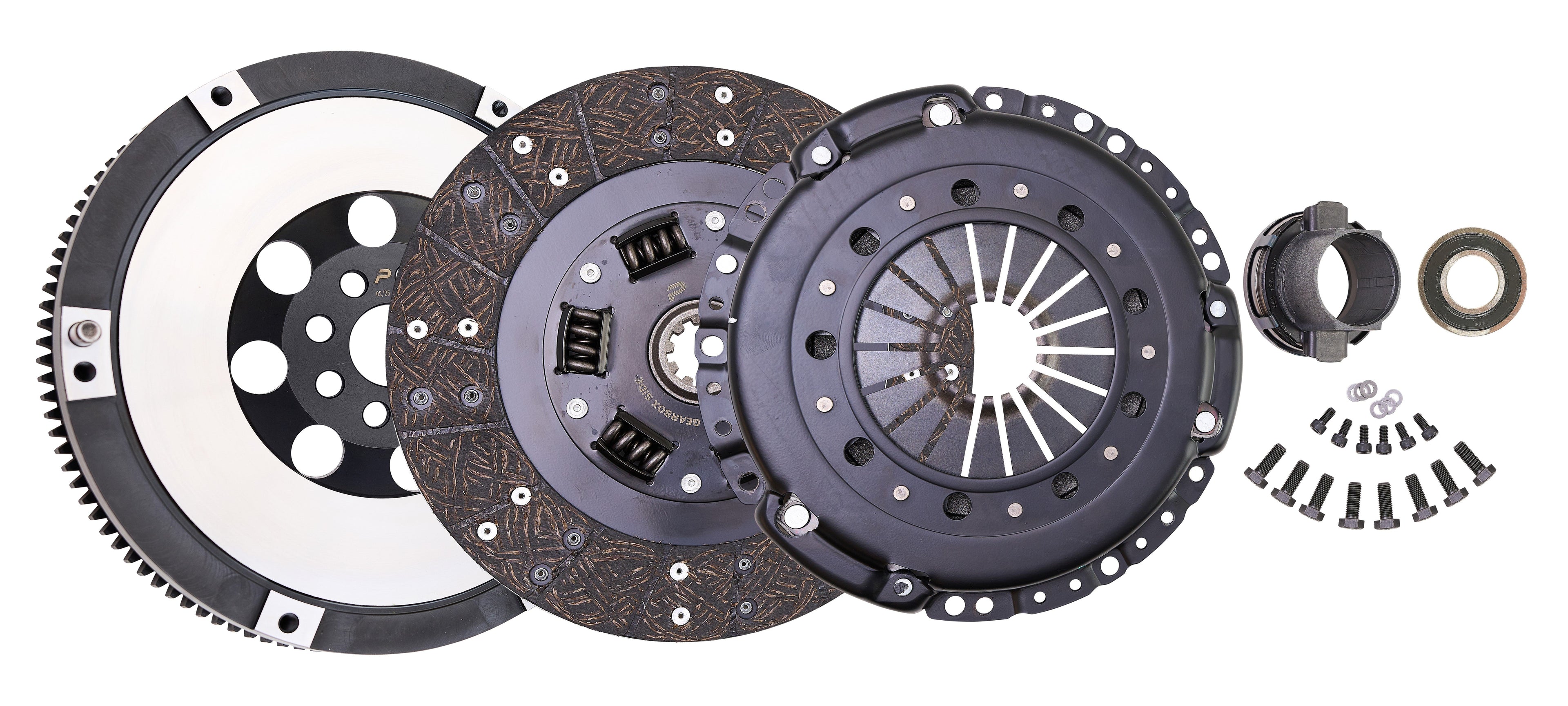

BMW E36 / E46 - Clutch SMF Kit-Stage 1 Street HD - PC-3194-S1HF
BMW E36 / E46 - Clutch SMF Kit-Stage 1 Street HD - PC-3194-S1HF
Organic Sprung Clutch Kit Inc Flywheel
Enhanced strength with sharper drivetrain response. The Performance Clutches Stage 1 Street HD Single Mass Flywheel Kit is engineered for BMW E36 and E46 drivers seeking increased torque capacity, durability, and the performance advantages of a lightweight solid flywheel conversion. The kit centers around a 7.2kg lightweight single mass flywheel, manufactured from 4140 forged steel with an integral ring gear. This forged construction provides exceptional mechanical strength and heat resistance while significantly reducing rotational mass. By lowering the engine’s moment of inertia, revs build and fall more rapidly — resulting in sharper throttle response and quicker, more precise gear changes.
Technical specifications
| SKU | PC-3194-S1HF |
|---|---|
| Product range | Clutch SMF Kit - Stage 1 Street HD - PC-3194-S1HF |
| Base kit number | 3194 |
| Hub spline | 10 |
| Friction type / paddles | Full Face Organic |
| Operation | Push Type |
| Clamp load | 9300 N |
| Flywheel step | -3.7 mm |
| Torque at wheels | 370 Ib.ft / 502Nm |
| CSC required | No |
| Release bearing required | No |
| Release bearing included | Yes |
| Product weight | 16.2 Kgs |
| Shipping box | 379 × 360 × 131 mm |
| Box reference | PC-BOX-01 |
| Technical note | Kit include solid flywheel to replace the OE DMF |
| Recommended use | Street use, Fast road |
Vehicle compatibility
Use the model, year and engine details below to check fitment. If your vehicle has been modified or its exact specification is not shown, please confirm compatibility before ordering.
| Make | Model | Years | Chassis | Engine | Power | Drivetrain |
|---|---|---|---|---|---|---|
| BMW | 3 Series (E36) | 1990–2000 | E36 | 2.5L, 2.8L, 3.0L, 3.2L, M52 B25, M50 B25, M52 B28, S50 B30, S50 B32 | 170–321 hp | RWD, 5-Speed |
| BMW | 3 Series (E46) | 1998–2003 | E46 | 2.5L, 2.8L, 3.0L, M52 B25, M54 B25, M52 B28, M54 B30 | 163–231 hp | RWD, AWD, 5-Speed, Sequential |
| BMW | 5 Series (E39) | 1996–2003 | E39 | 2.5L, 2.8L, 3.0L, 3.5L, M54 B25, M52 B28, M54 B30, M52 B30, M62 B35 | 192–245 hp | RWD, 5-Speed |
| BMW | 7 Series (E38) | 1996–2001 | E38 | 2.8L, 3.5L, M52 B28, M62 B35 | 193–235 hp | RWD, 5-Speed |
| BMW | Z3 (E36) | 1998–2003 | E36 | 2.8L, 3.0L, M52 B28, M54 B30 | 193–231 hp | RWD, 5-Speed |
